CASE STUDIES
Industrial Aerogel Insulation Projects
Runfew specializes in industrial nano aerogel insulation systems for petrochemical plants, LNG cryogenic insulation projects, steam pipeline insulation systems, refinery thermal management and industrial energy saving retrofit applications.

Industrial insulation systems often face excessive heat loss, high maintenance frequency, moisture absorption, corrosion risk and increasing lifecycle operating cost during long-term operation.

Runfew aerogel insulation blanket systems provide lower thermal conductivity, thinner insulation structures and improved thermal performance for industrial insulation projects.

Thermal conductivity as low as:
Industrial Applications
Petrochemical
LNG Cryogenic
Steam Pipeline
Refinery
District Heating
Industrial Equipment

 0.015 W/m·K

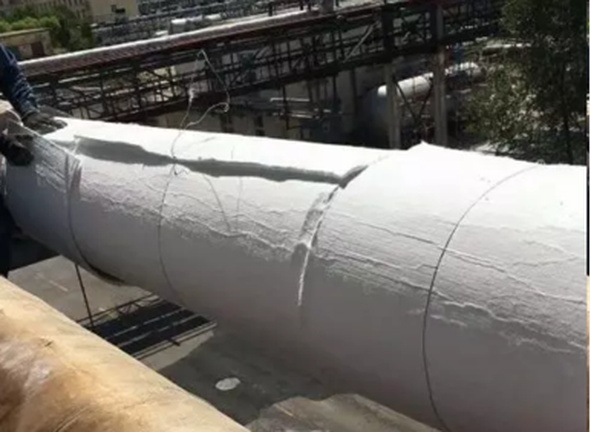

Petrochemical Steam Pipeline Insulation Project
Reduced Heat Loss in High-Temperature Steam Transmission System
Project Background
The original steam pipeline insulation system used traditional insulation materials for long-term high-temperature operation.
Heat loss increased during operation. Surface temperature remained high. Maintenance frequency increased after years of service.
The customer required lower thermal conductivity insulation material to improve thermal efficiency and reduce maintenance cost.
High-Temperature Steam Transmission System
Industry Petrochemical
Application Steam Pipeline Insulation
Operating Temperature 445°C
Operating Pressure 3.5 MPa
Thermal Conductivity 0.015 W/m·K
Project Results
• Energy saving up to 77.82%
• Reduced insulation thickness
• Lower surface temperature
• Reduced heat flow density
• Reduced maintenance frequency
• Improved thermal efficiency
LNG Cryogenic Insulation Project
Reduced Insulation Thickness in LNG Cryogenic System
Industry LNG & Cryogenic
Application Cryogenic Pipeline Insulation
Thermal Conductivity 0.015 W/m·K
Hydrophobicity ≥99%
Project Results
• Reduced insulation thickness by 50%
• Lower condensation risk
• Improved cryogenic stability
• Reduced thermal loss
• Better installation flexibility
Project Background
LNG cryogenic insulation systems require ultra-low thermal conductivity and long-term stability under low-temperature operating conditions.
Traditional insulation structures required excessive thickness and faced condensation risks during operation.
Runfew provided flexible aerogel insulation blanket systems for LNG pipeline insulation and cryogenic equipment applications.
LNG Cryogenic System
District Heating Pipeline Insulation Project
Reduced Heat Loss in District Heating Network
Project Background
Long-distance district heating pipeline systems often experience thermal energy loss during operation.
Traditional insulation materials absorbed moisture over time and reduced thermal performance.
The customer required lower thermal conductivity insulation systems with improved long-term stability.
District Heating Network
Industry District Heating
Application Heating Pipeline Insulation
Thermal Conductivity 0.015 W/m·K
Service Life 20+ Years
Project Results
• Reduced heat loss
• Reduced maintenance frequency
• Improved thermal efficiency
• Improved waterproof performance
• Lower lifecycle cost
Industrial Equipment Insulation Project
Removable Insulation System for High-Temperature Equipment
Industry Industrial Manufacturing
Application Equipment Insulation
Insulation Type Removable Aerogel Blanket
Project Results
• Faster maintenance process
• Reduced heat loss
• Improved installation flexibility
• Reduced downtime
• Better insulation performance
Project Background
Industrial valves, flanges and high-temperature equipment often require removable insulation structures for maintenance access.
Traditional rigid insulation materials created installation difficulties and increased maintenance time.
Runfew provided removable aerogel insulation systems for industrial equipment thermal management applications.
High-Temperature Equipment
Need an Industrial Aerogel Insulation Solution?
Runfew provides industrial aerogel insulation blanket systems for steam pipeline insulation, LNG cryogenic insulation, refinery thermal insulation, industrial equipment insulation and industrial energy saving retrofit projects.
Market Applications & Achievements

aerogel insulation materials are widely used in aerospace, petrochemical, thermal power plants and high-temperature steam pipeline systems, providing excellent thermal insulation performance, lightweight structure, energy efficiency and convenient maintenance solutions.
Aerospace Industry
Nano porous aerogel super insulation materials can achieve equivalent thermal insulation performance with lighter weight and smaller volume. This unique advantage makes them highly suitable for aerospace applications. As thermal insulation materials for aircraft engines, aerogels not only reduce heat loss effectively but also decrease overall engine weight, improving energy efficiency and operational performance.
Aerospace Industry
Aerospace Industry

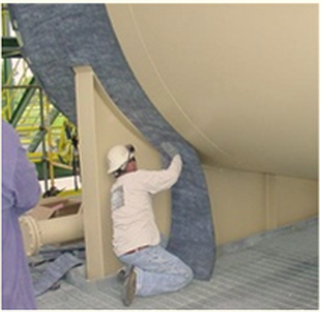

Petrochemical & Steam Pipelines
Petrochemical & Steam Pipelines
Petrochemical & Steam Pipelines
Petrochemical & Steam Pipelines
Aerogel blankets are widely used for insulation in chemical plants, thermal power plants and industrial steam pipelines. They provide significant advantages in reducing heat loss, lowering energy consumption and saving installation space. The removable insulation structure also makes maintenance and inspection more convenient. Compared with traditional rock wool insulation, the overall energy-saving efficiency can increase by approximately 26.8%.

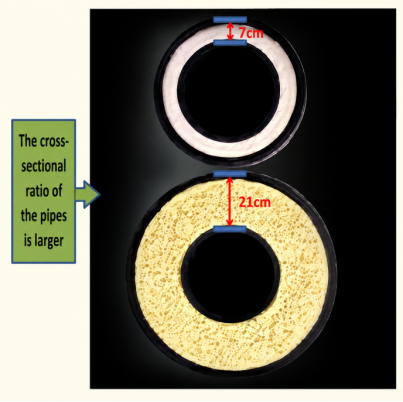

High-Temperature Steam Pipeline System
For high-temperature steam transportation systems, aerogel insulation blankets are applied with multi-layer composite insulation structures, combined with aluminum foil infrared reflective layers and color steel protection. This solution significantly reduces insulation thickness while maintaining safe external surface temperatures. Compared with traditional calcium silicate insulation materials, the insulation thickness can be reduced to one-third, with energy-saving efficiency exceeding 26%.
High-Temperature Steam Pipeline System
High-Temperature Steam Pipeline System
High-Temperature Steam Pipeline System
26%
Energy Saving Improvement
1/3
Reduced Insulation Thickness
600℃
Stable High-Temperature Operation
get in touch
Zhejiang Runhui, Your Partner For Custom Flexible Aerogels
Zhejiang Runhui New Materials Co., Ltd. handles everything from small batch trials to large projects, with any thickness (1-10 mm), coating (aluminum foil/silicone) or size. You can work directly with our production team to meet your specifications.
